27" Closed Frame Touch Monitor
Large-Format PCAP Touchscreen for Kiosks, Self-Service and Commercial Applications.
The 27″ Closed Frame Touch Monitor combines a large Full HD display with responsive projected capacitive (PCAP) touch technology in a durable, fully enclosed design. Built for kiosks, self-service machines, industrial control systems and interactive commercial applications, it delivers clear visuals, intuitive touch interaction and flexible integration.
23.8" Full HD Display
1920 × 1080 Full HD resolution delivers clear, detailed images for interactive applications, control interfaces and digital displays.
PCAP Multi-Touch
Projected capacitive touchscreen technology provides responsive and accurate multi-touch interaction for intuitive operation.
Closed Frame Design
The enclosed metal housing provides a clean, professional appearance while protecting the display for demanding commercial and industrial environments.
Flexible Integration
Designed for flexible installation with mounting solutions suitable for panel integration, kiosks, enclosures and other professional systems.
27" Closed Frame Touch Monitor for Interactive Applications
The MotiveTouch 27″ Closed Frame Touch Monitor is designed for applications that require a large, reliable and easy-to-integrate touchscreen display. Its 27-inch screen provides a spacious interactive area, making it ideal for customer-facing interfaces, control systems and self-service applications.
The projected capacitive (PCAP) touchscreen provides accurate and responsive touch interaction, while the enclosed frame creates a clean and professional solution for equipment manufacturers and system integrators.
With flexible mounting options and multiple interface configurations, the monitor can be integrated into kiosks, self-service machines, industrial equipment, retail systems and other interactive solutions.
Key Features
Advanced Slim-Bezel Design
Sleek ultra-slim bezel design for a modern, space-efficient display.
Rich I/O Options
DP, HDMI, and VGA inputs support flexible system connectivity.
Widely Power Input
DC 12V standard power input or DC 12–24V wide-voltage input.
3mm Tempered Cover Glass
Durable 3mm physical tempered glass protects the screen from accidental impacts.

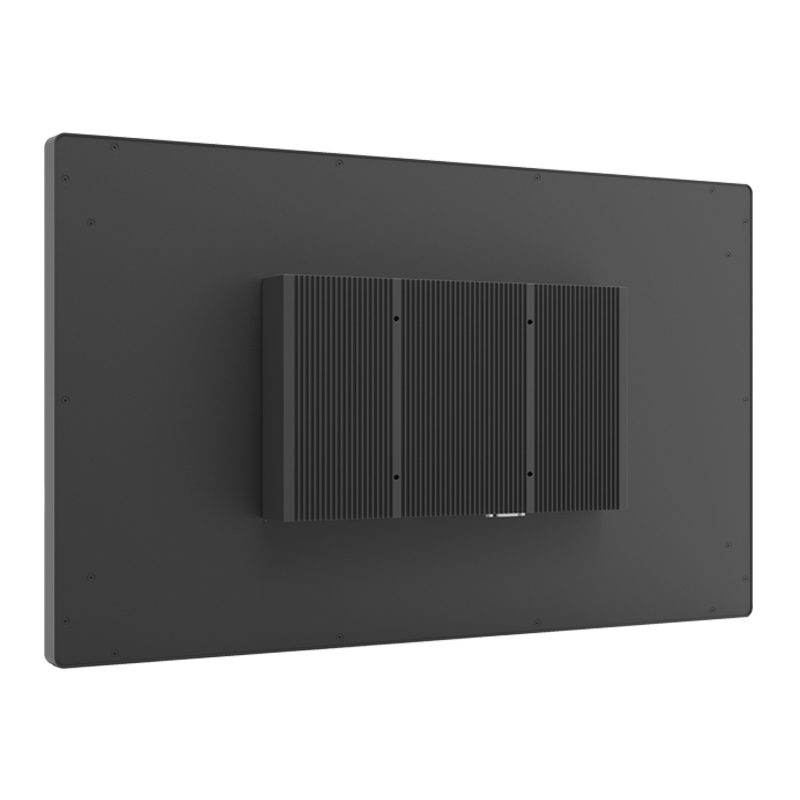

Flexible Front-Mount Design
Front installation, side mounting holes, and standard rear VESA mounting holes.
Fanless Industrial Design
Fanless aluminum alloy enclosure with IP65-rated front-panel protection.
Technical Specification
| Screen Size | 27 inch |
| Visible Area | 599.6 x 338.2 mm |
| Resolution | 1920 x 1080 @60Hz |
| Aspect Ratio | 16 : 9（standard） |
| Viewing Angle | 178°H/V |
| Brightness | LCD panel： 250 nits； Touch Pcap： 225 nits |
| Contrast Ratio | 3000 : 1 |
| Backlight Lifespan | 30,000 hrs |
| Touch Technology | Projected Capacitive Touch (PCAP) |
| Number of Touch Points | 10-point Touch (Under Windows 7/10/11) |
| Cover Glass | 3mm physically tempered (silk print), (optional: AG/AR |
| I/O interfaces | 1*USB-B（Touch） |
| 1*VGA | |
| 1*HDMI （Type-A） | |
| 1*DP | |
| Optional Phoenix terminal for audio output | |
| Input Voltage | 12V DC terminal, standard power adapter included. Optional 24V available (no adapter by default). |
| Static Power Consumption | ≤0.5W |
| Enclosure Color | Black |
| Overall Dimensions | 654.1 x 392.7 x 49 mm |
| VESA | 100 x 100 mm M4 VESA |
| Net Weight | 9 KG |
| Operating Temperature | 0 ~ 50 ℃ (32 ~ 122°F) |
| Storage Temperature | -20 ~ 60℃（-4 ~ 140°F） |
| Waterproof | Front Panel IP65 Protection Rating |
| Operating Hours | 7 x 24 hours |
| Certifications | CE， FCC， CCC |
Applications
Self Checkout Machine
Large touchscreen for self-checkout systems, providing an intuitive interface for product selection, payment instructions and customer interaction.
Self-Service Kiosk
Ideal for self-service kiosks in retail, hospitality, transportation and public facilities where a large interactive display improves user experience.

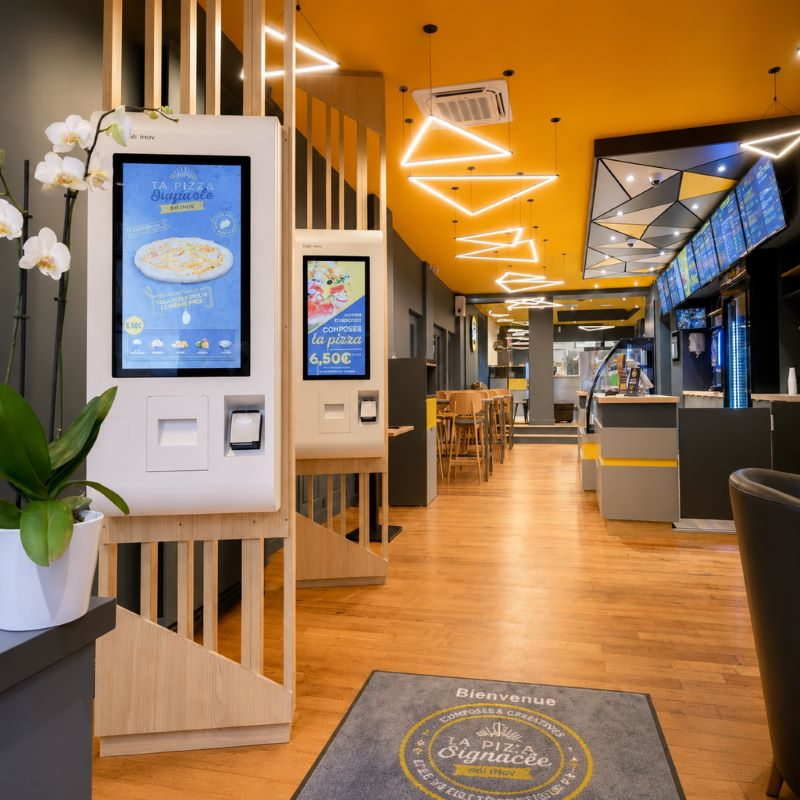

Digital Ordering Kiosk
Large touchscreen solution for restaurants, food service and digital ordering kiosks, enabling fast and intuitive customer interaction.
Commercial Equipment
For a wide range of OEM and embedded interactive systems.
Built for OEMs, System Integrators and Equipment Manufacturers
MotiveTouch provides touchscreen monitor solutions for OEMs, system integrators and equipment manufacturers. The 27″ closed frame touch monitor can be integrated into new equipment or used as a replacement display for existing systems.
Flexible configuration options help customers match the display, touch interface, mounting method and connectivity requirements of their application.
Why Choose the MotiveTouch 27" Closed Frame Touch Monitor?
Large Interactive Display
The 27-inch screen provides a spacious interface for menus, dashboards, product information and interactive applications.
Responsive Touch Experience
PCAP touch technology delivers fast and accurate interaction for modern user interfaces.
Easy System Integration
The closed-frame construction allows the monitor to be integrated into kiosks, cabinets, counters and other equipment.
Built for Professional Applications
Designed for continuous interaction in commercial, industrial, retail and self-service environments.
Frequently Asked Questions
What is a 27" closed frame touch monitor?
A 27″ closed frame touch monitor is a fully enclosed touchscreen display designed for professional applications such as kiosks, self-service machines, industrial equipment and interactive systems.
What touch technology does the 27" touchscreen monitor use?
The monitor uses projected capacitive (PCAP) touchscreen technology for responsive and accurate touch interaction.
What is the warranty year?
MotiveTouch provides 2-years as a standard free warranty service.
What video inputs are available on the 27" touch monitor?
The monitor supports DP, HDMI, and VGA video inputs, providing flexible connectivity with computers, industrial controllers, embedded systems and other video sources.
Does the 27" touch monitor support 12–24V wide-voltage input?
The monitor uses 12V standard power input, with an optional 12–24V wide-voltage input configuration for applications requiring a wider power range.
Looking for a 27" Touch Monitor for Your Application?
Tell us about your project. Our team can help you select the right touchscreen configuration for kiosks, self-checkout systems, industrial equipment, healthcare applications and other interactive solutions.
