23.8" Open Frame PCAP Touch Monitor
A 23.8-inch open frame touchscreen designed for seamless integration into kiosks, industrial equipment, self-service terminals and embedded systems.
23.8" Full HD Display
1920 × 1080 resolution for clear and detailed visual output.
PCAP Multi-Touch
Responsive projected capacitive touch technology for intuitive interaction.
Open Frame Design
Designed for easy integration into custom enclosures and equipment.
Flexible Integration
VESA hole or side brackets mounting options help simplify OEM system integration.
23.8" Open Frame Touch Monitor for Embedded Applications
The MotiveTouch 23.8″ Open Frame Touch Monitor combines a large Full HD display with responsive PCAP touch technology in an integration-friendly open frame design. It is engineered for OEMs, system integrators and equipment manufacturers that need a reliable touchscreen display for embedded applications.
With its slim open frame construction and flexible mounting design, the 23.8-inch touchscreen can be integrated into kiosks, self-service terminals, industrial equipment, automation systems and other custom enclosures.
Key Features of the 23.8" Open Frame Touch Monitor
23.8" Full HD Display
The 23.8-inch display provides a 1920 × 1080 Full HD resolution, delivering clear images and a spacious viewing area for interactive applications.
PCAP Multi-Touch Tech
Projected capacitive (PCAP) touch technology provides responsive and accurate touch interaction for modern user interfaces and interactive equipment.
Open Frame Construction
The open frame design allows the display to be integrated directly into custom equipment, cabinets, kiosks and machine enclosures.
Flexible Installation
Designed for OEM and system integration, the monitor can be configured to meet different mounting, interface and application requirements.
Multiple Interface Options
Rich interfaces supporting HDMI, VGA and DP video input.
OEM & Custom Integration
MotiveTouch supports customized touchscreen solutions for OEM and ODM projects, including mounting, touch and interface configurations.
Technical Specification
| Screen Size | 23.8 inch |
| Visible Area | 527.0 x 296.5 mm |
| Resolution | 1920 x 1080 @60Hz |
| Aspect Ratio | 16 : 9（standard） |
| Viewing Angle | 178°H/V |
| Brightness | LCD panel： 250 nits； Touch Pcap： 225 nits |
| Contrast Ratio | 1000 : 1 |
| Backlight Lifespan | 30,000 hrs |
| Touch Technology | Projected Capacitive Touch (PCAP) |
| Number of Touch Points | 10-point Touch (Under Windows 7/10/11) |
| Cover Glass | 3mm physically tempered (silk print), (optional: AG/AR |
| I/O interfaces | 1*USB-B（Touch） |
| 1*VGA | |
| 1*HDMI （Type-A） | |
| 1*DP | |
| Optional Phoenix terminal for audio output | |
| Input Voltage | 12V DC terminal, standard power adapter included. Optional 24V available (no adapter by default). |
| Static Power Consumption | ≤10W |
| Enclosure Color | Black |
| Overall Dimensions | 585.4 x 357.7 x 51.5 mm |
| VESA | 100 x 100 mm M4 VESA |
| Net Weight | 8.2 KG |
| Operating Temperature | 0 ~ 50 ℃ (32 ~ 122°F) |
| Storage Temperature | -20 ~ 60℃（-4 ~ 140°F） |
| Waterproof | Front Panel IP65 Protection Rating |
| Operating Hours | 7 x 24 hours |
| Certifications | CE， FCC， CCC |
Applications

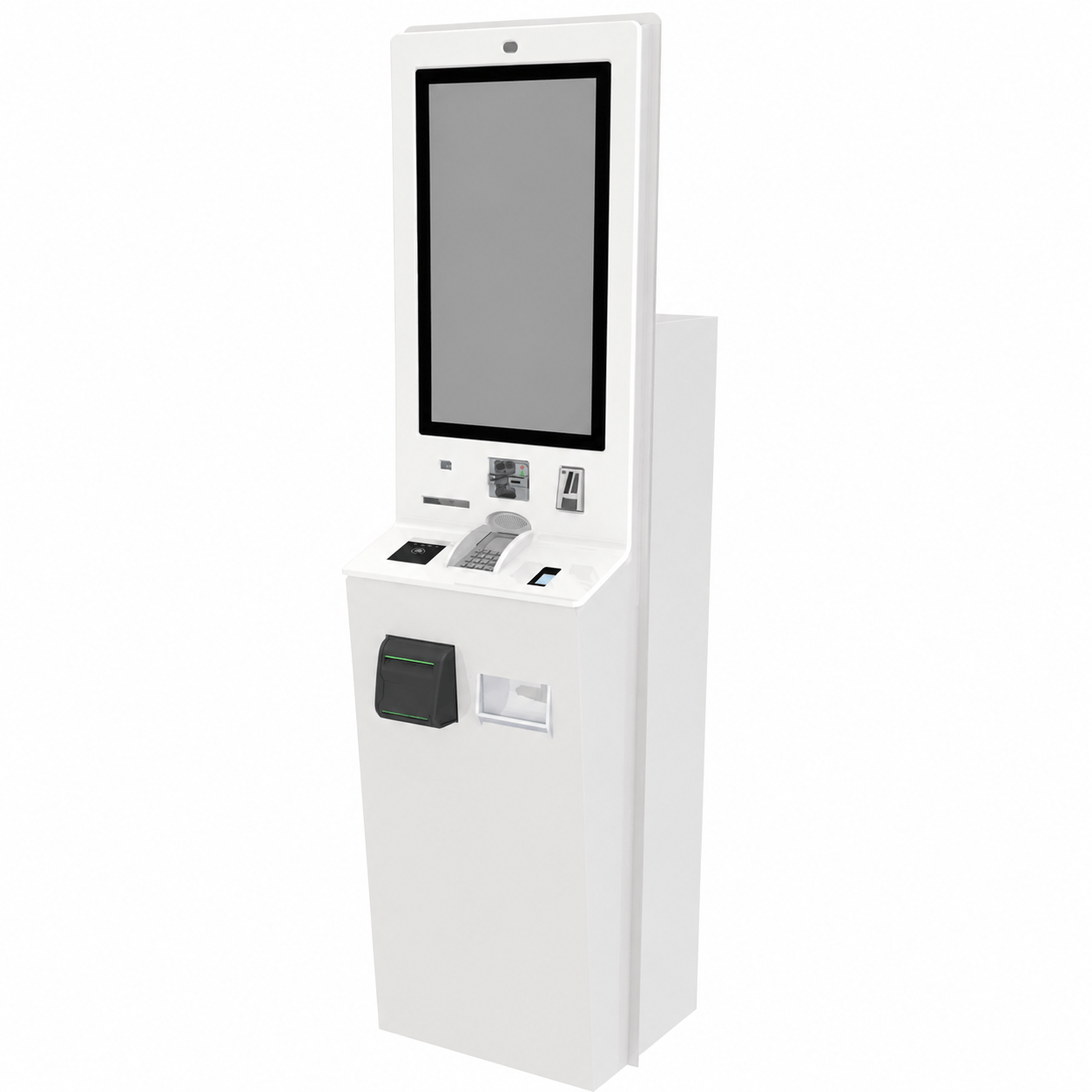

Self-Service Kiosks
Large interactive display for check-in kiosks, ordering terminals and self-service systems.
Vending Machines
Integrated touchscreen interfaces for vending and automated retail equipment.
Industrial HMI
Touchscreen interface for machinery, automation equipment.
Embedded Systems
Designed for integration into custom machines, cabinets and OEM equipment.
Why Choose MotiveTouch for 23.8" Touch Monitor Solutions?
MotiveTouch provides industrial touchscreen display solutions for OEMs, system integrators and equipment manufacturers. Our 23.8″ open frame touch monitors are designed with integration flexibility in mind, helping customers build reliable interactive equipment without designing the display system from scratch.
OEM & ODM Support
Customized solutions for application-specific requirements.
Multiple Touch Monitor Sizes
Available in multiple display sizes to support different equipment designs.
Flexible Integration
Open frame designs simplify integration into custom enclosures.
Application-Focused Solutions
Designed for industrial, commercial, kiosk and embedded applications.
Frequently Asked Questions
What is a 23.8" open frame touch monitor?
A 23.8″ open frame touch monitor is a touchscreen display designed to be integrated into custom equipment, kiosks, control panels and other enclosures. Unlike a standard desktop monitor, its open frame construction provides greater flexibility for embedded installation.
What touch technology does the 23.8" open frame monitor use?
The monitor uses projected capacitive (PCAP) touch technology, providing responsive and accurate touch interaction for interactive applications.
What is the warranty year?
MotiveTouch provides 2-years as a standard free warranty service.
Can the 23.8" touch monitor be customized?
MotiveTouch can support application-specific requirements such as touch technology, interfaces, mounting and other configuration options depending on the project.
Where can a 23.8" open frame touchscreen be used?
It can be used in kiosks, self-service terminals, industrial automation equipment, control systems, interactive digital signage, retail equipment and other embedded applications.
Looking for a 23.8" Open Frame Touch Monitor?
Tell us about your application and requirements. Our team can help you select the right touch monitor configuration for your project.
