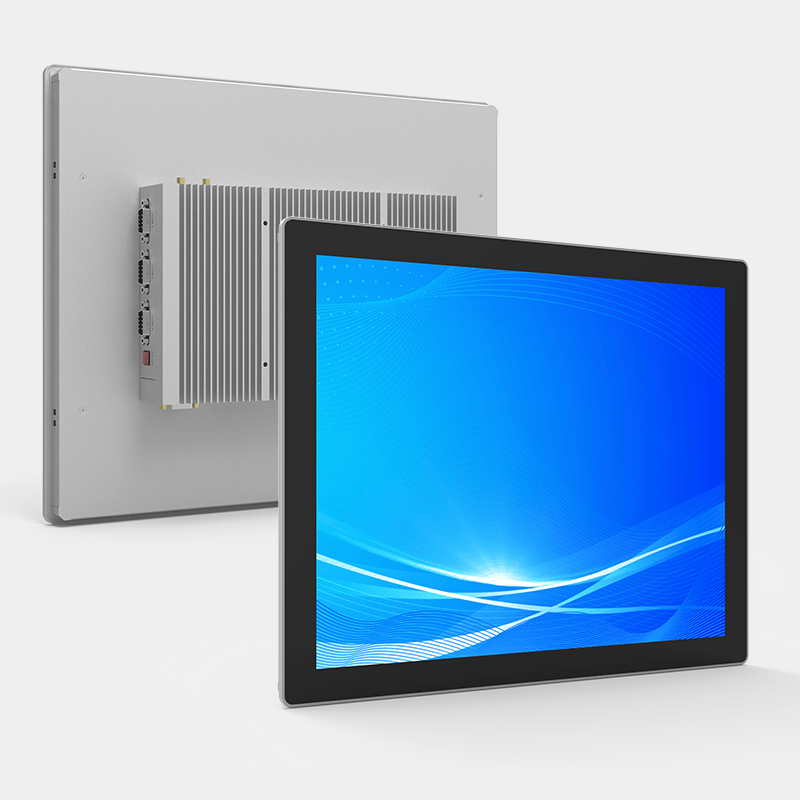

17" Panel Mount Touch All-in-One PC
Compact Touch Computing for Industrial Control, HMI and Embedded Applications.
Combine interactive touch control and reliable computing in a space-saving panel mount design. The 17″ Panel Mount Touch All-in-One PC is designed for HMI, machine control, automation, self-service equipment and OEM applications where easy integration and dependable operation matter.
17" Touch All-in-One PC for Integrated Control and Computing
The MotiveTouch 17″ Panel Mount Touch All-in-One PC combines a touchscreen display, embedded computing platform and industrial connectivity in a single compact system. Designed for panel integration, it provides an intuitive operator interface while reducing the space and installation complexity of separate displays and computers.
With a 17″ touchscreen and flexible mounting design, this panel PC is suitable for HMI, machine control, factory automation, industrial monitoring, kiosks, self-service equipment and OEM projects.
Key Features
12th Gen Intel Processor
High-performance, fanless 12th generation Intel® Alder Lake processor delivers reliable computing performance for demanding applications.
9–36V Wide Voltage Input
Designed with an aluminum alloy enclosure and supports 9–36V wide-voltage DC input for flexible integration into different power environments.

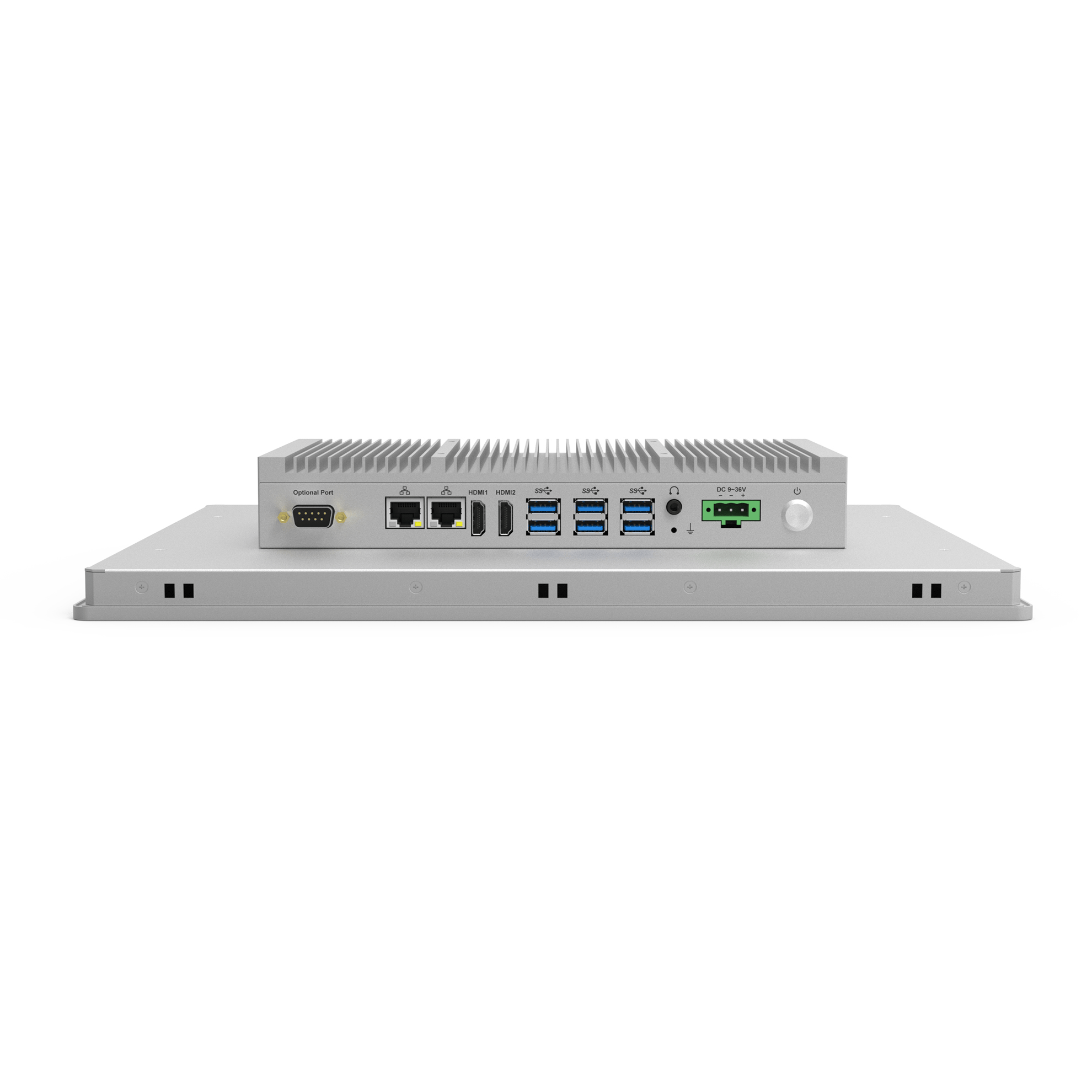

Rich I/O Connectivity
Equipped with 4 serial ports, 6 USB ports, and 2 network ports for flexible connectivity with peripherals, controllers, and network devices.
3mm Tempered Glass & IP65
The 3mm physically tempered glass provides enhanced protection against accidental impact, and the front IP65 protection.
Ultra-Narrow Bezel Design
Industry-leading ultra-narrow bezel design maximizes the active display area while providing a sleek and compact appearance.

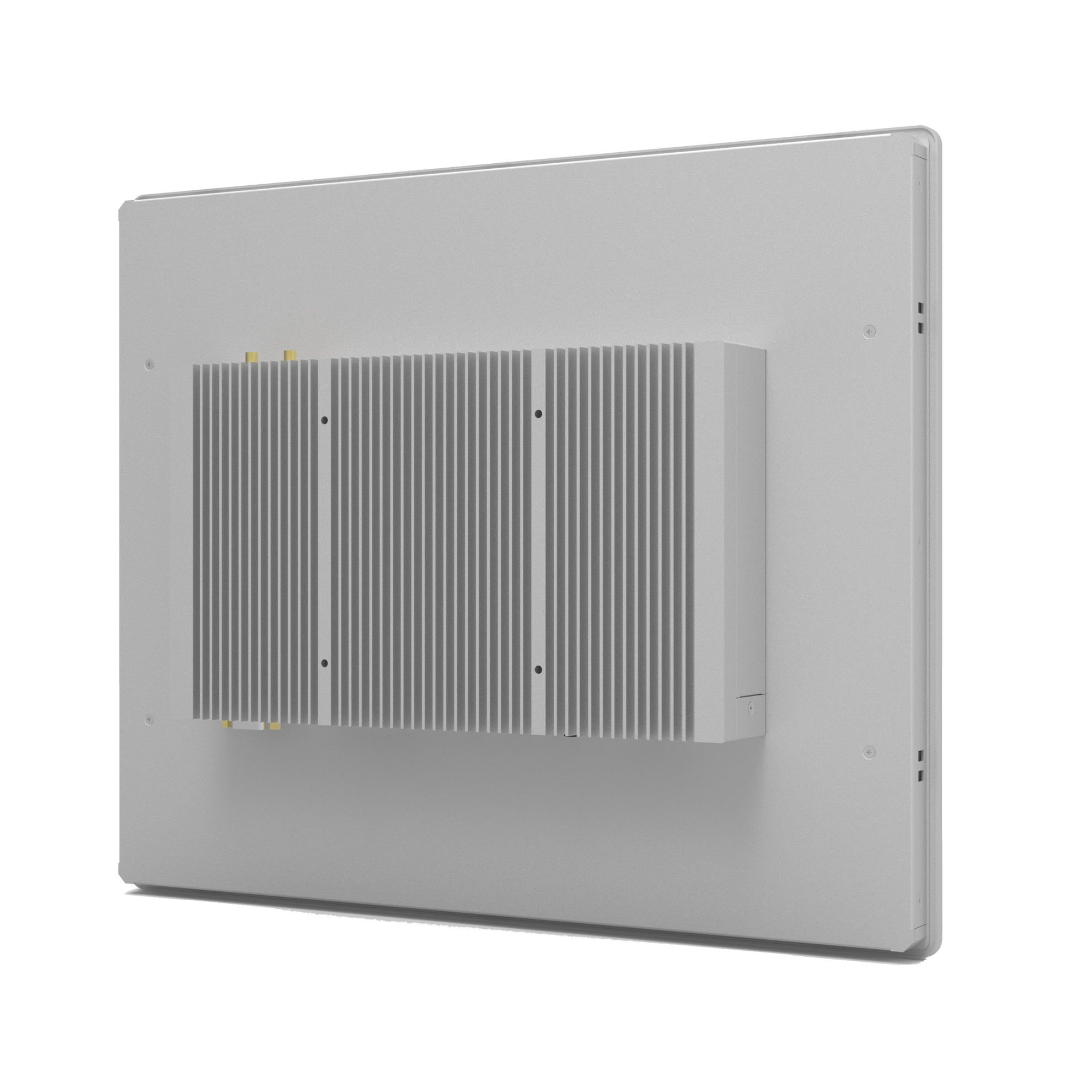

Fanless Computing Design
The fanless architecture eliminates the need for a cooling fan, helping reduce noise, dust accumulation, and mechanical maintenance.
Technical Specification
| Screen Size | 17 inch |
| Visible Area | 337.9 x 270.3 mm |
| Resolution | 1280 x 1024 @60Hz |
| Aspect Ratio | 4 : 3（standard） |
| Viewing Angle | 170°H/V |
| Brightness | LCD panel： 250 nits， Touch Pcap： 225 nits |
| Contrast Ratio | 1000 : 1 |
| Backlight Lifespan | 30,000 hrs |
| Touch Technology | Projected Capacitive Touch (PCAP) |
| Number of Touch Points | 10-point Touch (Under Windows 7/10/11) |
| Cover Glass | 3mm physically tempered (silk print), (optional: AG/AR |
| CPU | Intel N97, 2.0G Hz, up to 3.6G Hz |
| Intel i3-1215U, 1.2G Hz, up to 4.4G Hz | |
| Intel i5-1235U, 1.3G Hz, up to 4.4G Hz | |
| Intel i7-1255U, 1.7G Hz, up to 4.7G Hz | |
| Memory | DDR4 8G, up to 64G |
| Storage | 128G SSD default, up to 1TB |
| WIFI | WIFI + BT |
| Ethernet | 2 x Intel GBE LAN chip, 10/100/1000 Mbps, RJ45 port |
| USB Port | N97: 4xUSB 3.0 + 2xUSB 2.0 |
| i3/i5/i7: 6xUSB 3.0 | |
| Videot Output | 1xHDMI + 1xDP |

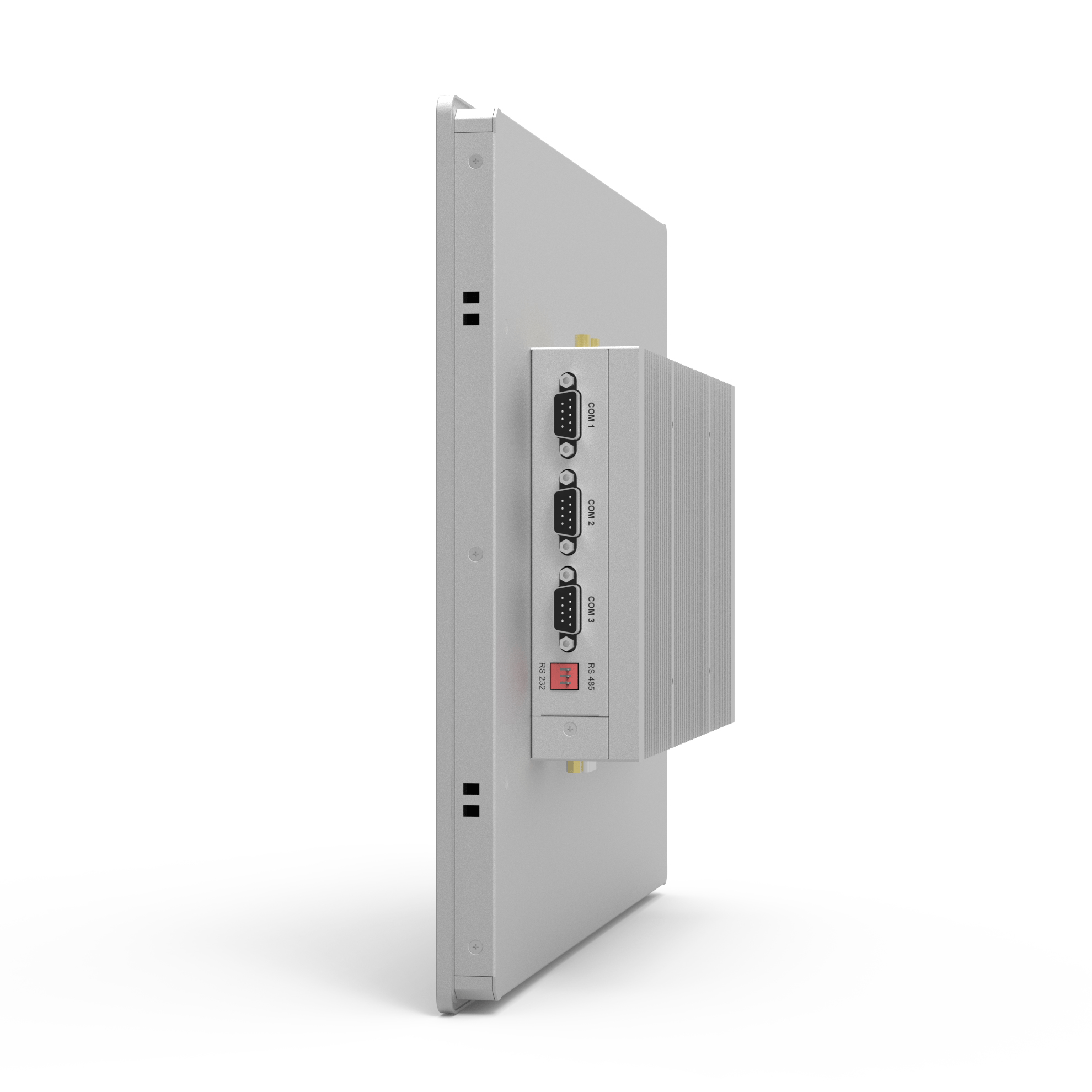

| Serial Port | 1xRS 485(RS 232 is optional), 3xRS 485/RS 232 |
| Operating System | Win 10, Win 11, Linux |
| Input Voltage | DC 9~36V (3P-5.08 Phoenix Connector) |
| Housing Material | Aluminum alloy housing |
| Overall Dimensions | 386.4 x 318.9 x 60.1 mm |
| VESA | 100 x 100 mm M4 VESA |
| Net Weight | 5.8 KG |
| Operating Temperature | 0 ~ 50℃ |
| Storage Temperature | -20 ~ 70℃ |
| Waterproof | Front Panel IP65 Protection Rating |
| Operating Hours | 7 x 24 hours |
| Certifications | CE， FCC， CCC |
Built for Integration. Designed for Reliability.
MotiveTouch develops touch display and touch computing solutions for industrial, commercial and OEM applications. Our 17″ Panel Mount Touch All-in-One PC combines display, touch and computing functions into one integrated platform, helping equipment manufacturers simplify system design and installation.
Reliable Hardware
Industrial-grade components designed for long-term operation.
Flexible Configuration
Configure computing performance, memory, storage, touch and I/O according to project requirements.
OEM Support
Support customized hardware, mechanical and system requirements.
Global B2B Support
Engineering and sales support for system integrators, equipment manufacturers and OEM customers.
Applications
Industrial HMI
Provide operators with an intuitive touchscreen interface for machine monitoring, control and production data.
Transportation & Control
Designed for transportation terminals, vehicle systems, monitoring stations and other applications requiring compact touch computing.
Self-Service Kiosk
Provide an integrated touchscreen computing platform for self-service terminals, information kiosks and interactive equipment.
OEM Equipment Integration
A flexible platform for equipment manufacturers requiring an integrated display and computer solution.
OEM & ODM Touch Panel PC Solutions
Need a customized 17″ Panel Mount Touch All-in-One PC?
MotiveTouch supports OEM and ODM projects requiring customized touch computers for industrial equipment, kiosks, automation systems and specialized applications.
Depending on project requirements, customization may include:
- Custom branding and logo
- Hardware configuration
- Memory and storage options
- Operating system configuration
- I/O customization
- Mounting and enclosure modifications
- Custom software or pre-installed applications
Frequently Asked Questions
What is a 17" Panel Mount Touch All-in-One PC?
A 17″ Panel Mount Touch All-in-One PC combines a 17-inch touchscreen display and embedded computer into one integrated system. It is designed to be installed directly into control panels, cabinets, machinery and other equipment.
Is the 17" Panel Mount Touch All-in-One PC suitable for industrial automation?
Yes. It can be used for HMI, machine control, factory automation, industrial monitoring and other applications requiring an integrated touchscreen computer.
What is the warranty year?
MotiveTouch provides 1-year as a standard free warranty service.
What operating systems are supported?
Depending on the configuration, the system can support operating systems such as Windows and Linux. Contact MotiveTouch for available configurations.
Can the 17" Panel Mount Touch All-in-One PC be customized?
Yes. MotiveTouch can support OEM and ODM requirements such as computing configuration, memory, storage, I/O, enclosure, mounting, branding and other project-specific requirements.
Looking for a 17" Touch Panel PC for Your Equipment?
Tell us your application, required interfaces and mounting requirements. Our team can help you select or customize the right 17″ Panel Mount Touch All-in-One PC for your project.
