15" 1000 Nits High Brightness Touch Monitor
High-brightness touchscreen visibility for demanding indoor, outdoor and bright-light environments.
Built for applications where standard displays are difficult to see, this 15-inch high brightness touch monitor delivers clear, responsive touchscreen interaction in direct or strong ambient light.
15" 1000 Nits High Brightness Touch Monitor for outdoor application
The MotiveTouch 15″ High Brightness Touch Monitor is designed for applications where standard displays may become difficult to read under strong ambient light or direct sunlight.
With a high-brightness 1000 nits display, this sunlight readable touchscreen provides enhanced visibility for outdoor, semi-outdoor and bright industrial environments. The 15-inch form factor offers a practical balance between screen visibility and compact system integration, making it suitable for equipment control, HMI, kiosks, transportation systems and self-service applications.
The responsive touchscreen provides intuitive interaction without requiring a separate keyboard or mouse, while the industrial-oriented design supports reliable integration into professional equipment and embedded systems.
Whether you are building an outdoor kiosk, industrial HMI, transportation terminal or equipment control panel, the 15″ 1000 nits touch monitor provides a clear and interactive display solution for demanding environments.
Key Features
1000 nits Sunlight Readable
High-brightness display provides improved visibility in bright environments and sunlight-exposed applications.
UV Filtering Layer
Helps protect the display and extend service life
HDMI, VGA & DP Inputs
Multiple video interfaces for flexible system integration.
UV & High-Temperature Resistant
UV-resistant, high-temperature printing for demanding environments
Manual & Auto Brightness Control
Flexible brightness adjustment for changing ambient light
Wide Operation Temperature Design
Reliable operation from -20°C to 70°C
Technical Specification
| Screen Size | 15 inch |
| Visible Area | 304.1 x 228.1 mm |
| Resolution | 1024 x 768 @60Hz |
| Aspect Ratio | 4 : 3（standard） |
| Viewing Angle | 178°H/V |
| Brightness | LCD panel： 1000 nits； Touch Pcap： 850 nits |
| Contrast Ratio | 1000 : 1 |
| Backlight Lifespan | 50,000 hrs |
| Touch Technology | Projected Capacitive Touch (PCAP) |
| Number of Touch Points | 10-point Touch (Under Windows 7/10/11) |
| Cover Glass | 3mm physically tempered (silk print), Anti-glare |
| I/O interfaces | 1*USB-B（Touch） |
| 1*VGA | |
| 1*HDMI （Type-A） | |
| 1*DP | |
| Input Voltage | DC 12V |
| Fan | PWM Fans |
| Light Sensor | Automatic brightness light sensor |
| Overall Dimensions | 360.3 x 284.3 x 42.5 mm |
| VESA | 75 x 75 mm M4 VESA |
| Net Weight | 5.3 kg |
| Operating Temperature | -20 ~ 70 ℃ |
| Storage Temperature | -20 ~ 70℃ |
| Waterproof | Front Panel IP65 Protection Rating |
| Operating Hours | 7 x 24 hours |
| Certifications | CE， FCC， CCC |
Applications
EV Charging Stations
Integrate the display into EV charging stations for charging status, user instructions, payment and interactive controls.

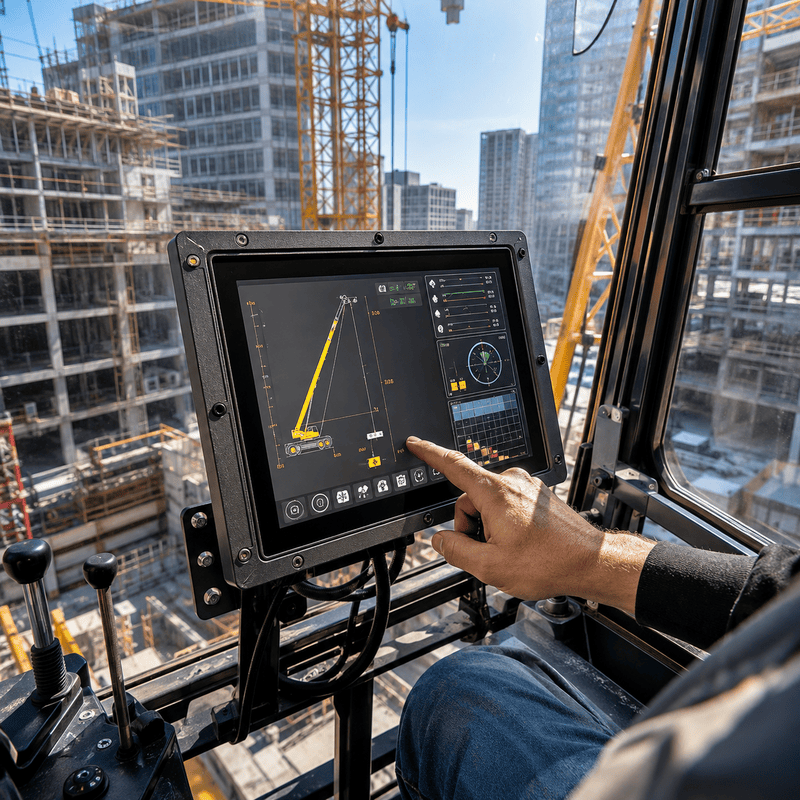

Construction Machinery
Suitable for excavators, loaders, cranes and other construction equipment requiring a durable, sunlight-readable touchscreen for machine control and monitoring.

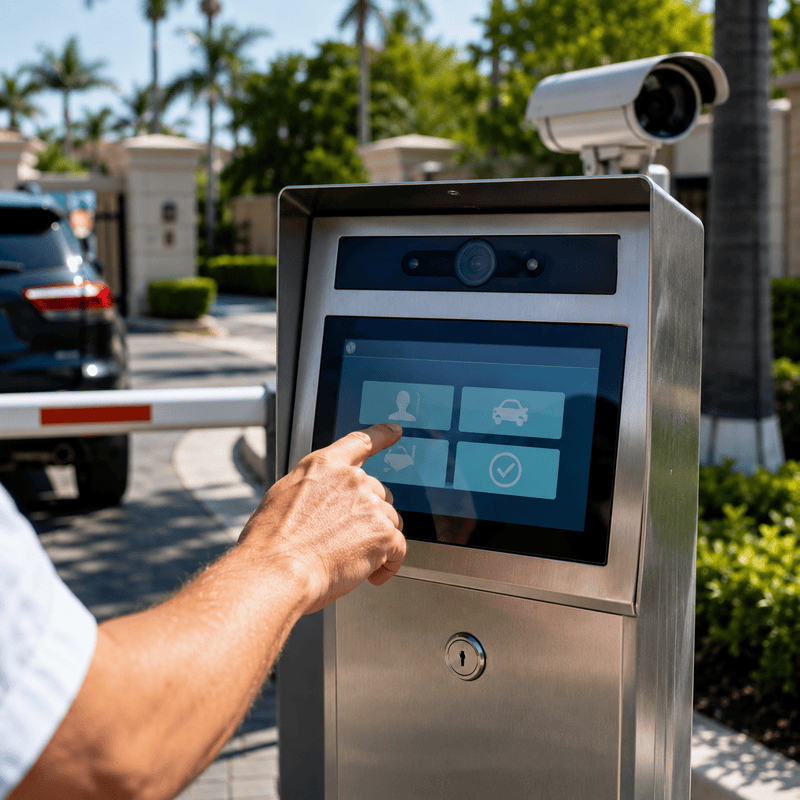

Security & Access Control
Use the touchscreen for access control, visitor management, security monitoring and interactive authentication systems.
Parking & Transportation
Ideal for parking terminals, transportation information systems, ticketing machines and passenger terminals.
Frequently Asked Questions
Is the 15" 1000 nits touch monitor sunlight readable?
Yes. The monitor uses a 1000 nits high-brightness display designed to provide improved visibility in bright ambient light and outdoor or semi-outdoor environments.
Is 1000 nits enough for outdoor use?
A 1000 nits display provides substantially higher brightness than typical indoor monitors and is suitable for many bright-light and semi-outdoor applications. Actual outdoor readability depends on factors such as direct sunlight, viewing angle, screen surface treatment and installation conditions.
What is the warranty year?
MotiveTouch provides 2-years as a standard free warranty service.
What applications is this 15" sunlight readable monitor suitable for?
Typical applications include industrial HMI, outdoor kiosks, parking systems, EV charging stations, vending machines, transportation equipment, agricultural machinery, construction equipment and access control systems.
Can the monitor be integrated into a kiosk or custom machine?
Yes. The display can be integrated into kiosks, machines, control panels and other custom equipment, with mounting and interface options depending on the configuration.
Can MotiveTouch customize the 15" high-brightness touch monitor?
Yes. Depending on project requirements, customization may include touch technology, cover glass, mounting structure, interfaces, brightness, housing and other display configurations.
Customization Options
MotiveTouch provides OEM and ODM customization for different equipment and integration requirements.
Available customization options may include:
- Display brightness
- Resolution
- PCAP or resistive touch
- Cover glass
- Anti-glare treatment
- Optical bonding
- Touch sensitivity
- Video interfaces
- Touch interface
- Mounting structure
- Enclosure design
- Cable length
- Logo / branding
- Operating temperature
- Power input
Tell us your application, installation dimensions and required interfaces, and our engineering team can recommend a suitable configuration.
Looking for a 15" High Brightness Touch Monitor?
MotiveTouch provides configurable touch monitor solutions for commercial, industrial and outdoor applications.
